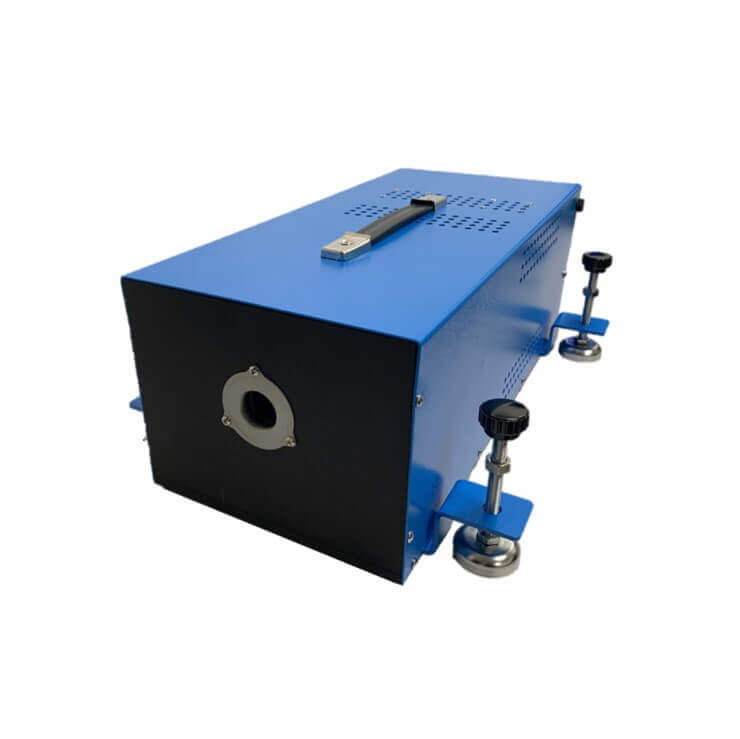

IOC VNIR Internal Scan Hyperspectral Camera

IOC VNIR Internal Scan Hyperspectral Camera
Features

  • HyperSpectral camera captures the image of the target at hundreds of wavelengths simultaneously.
  • Two standard versions available.
    -- VIS (380-800nm)
    -- VNIR (400-1,000nm)
  • HyperSpectral camera is aligned and calibrated before delivery and no need for user adjustments.
  • Compact and Robust. Suitable for industrial and scientific research applications.
Specifications
IOC VNIR Internal Scan Hyperspectral Camera
Model V8E-Zyla 4.2-IS V10E-Zyla 4.2-IS
Pixels (H x V) 2048 x 2048 2048 x 2048
Analog-Digital Converter 16 bits 16 bits
Imaging Spectrograph Options VIS:V8E (380~800nm) VNIR:V10E (400~1,000nm)
Spectral Bands 900+ bands 900+ bands
Spectral Resolution @30um slit 2.0nm(FWHM) @ VIS model 2.8nm(FWHM) @ VNIR model
OBF Option VNIR:OBF570 VNIR:OBF570
Applications
Hyperspectral imaging
Microscope
Agriculture
Aquaculture fishery
Artwork
Case Study
