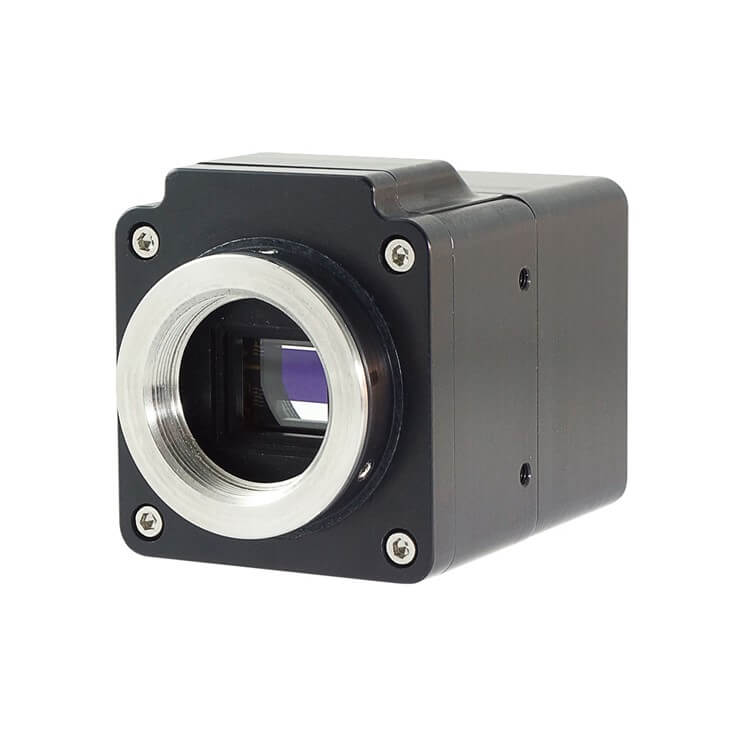

Hawk 216-A
Features
This new camera enables high sensitivity imaging (<50 ulux), using smaller pixels for ultra-sharp image resolution. With a peak QE of 90% (at 600nm) it also offers enhanced UV response from 180nm, perfect for underwater or airborne applications.
- Back Illuminated EMCCD technology.
- High QE: >90% @ 600nm.
- Enhanced blue response from 180nm.
- Fan-less cooling.
Specifications
| Hawk 216-A | |
| Focal plane array (FPA) | EMCCD |
| FPA size (px) | CCIR 769*288 / EIA 769*244 |
| Spectral range (QE > 10%) |
180-1100nm |
| Cooling | Active |
| Dark current (sensor at 15 °C) |
NA |
| Frame rate in USB 3.0 (fps) |
NA |
| Frame rate in CameraLink™ (fps) |
25Hz/30Hz |
| Digitization (bits) | 1.0Vp-p, 75Ω, ECIR or EIA |
| Computer interface | SMA type |
| ※ For more detail, please download specification document. | |
Applications
Ground Based Surveillance
Airborne Surveillance
UV Imaging Blue Response
Scientific Imaging
Situational Awareness
