Light guide
Features
- Fully Randomized Output for superb uniformity.
- Great for general area illumination and linescan applications.
- High temperature input for extended spectral range applications.
- Sheath：Rugged, flexible stainless steel.
Specifications
| Light guide | |||||||
| Model | 9021-HT | 9025-HT | 9130-HT | 9145-HT 1-2 | 9250-HT | 9560 | 9565 |
| Specifications |

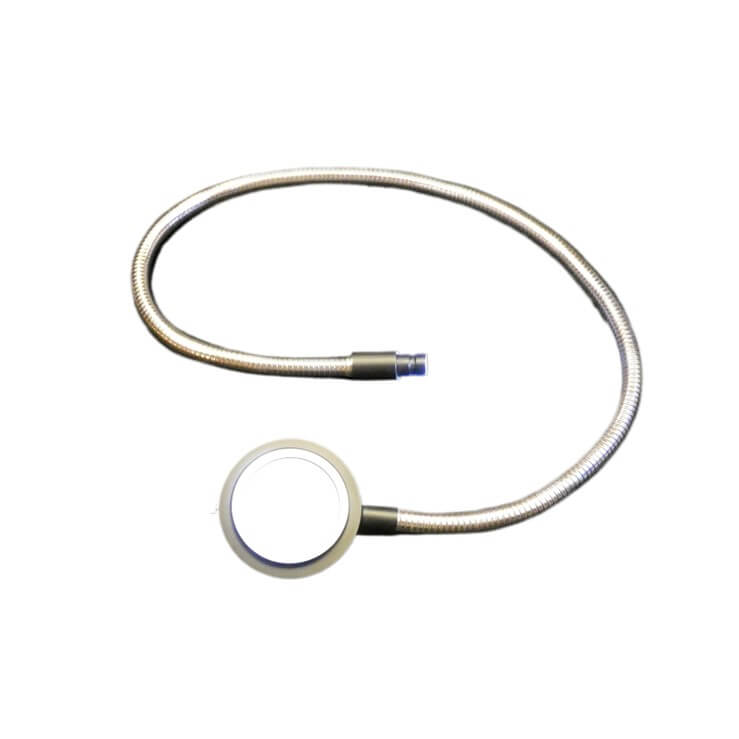

Optical Fibers:
1m
Output:
60mm ring light
|
Optical Fibers:
1m
Output:
30mm ring light
|
Optical Fibers:
1m
Output:
150mm line light*1
|

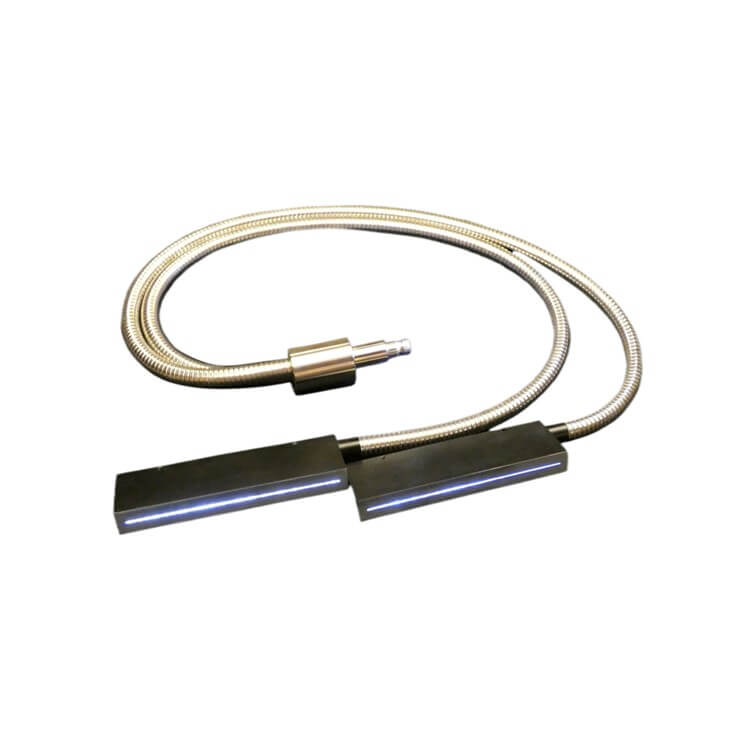

Optical Fibers:
1m(Y-optical fiber)
Output:
150mm line light*2
|
Optical Fibers:
1.5m(60")
Output:
Outer diameter 7.87mm fiber optic output port
|
150mm line light condenser | 150mm line light diffuser |
| Material |
Optical Fibers:
Glass(50µm),<0.7bB/m
Light output:
Aluminum
Connector:
6061 Aluminum
|
Optical Fibers:
Glass(50µm),<0.7bB/m
Light output:
Aluminum
Connector:
6061 Aluminum
|
Optical Fibers:
Glass(50µm),<0.7bB/m
Light output:
Aluminum
Connector:
6061 Aluminum
|
Optical Fibers:
Glass(50µm),<0.7bB/m
Light output:
Aluminum
Connector:
6061 Aluminum
|
Optical Fibers:
Glass(50µm),<0.7bB/m
Light output:
Aluminum
Connector:
6061 Aluminum
|
Light output:
Anodized aluminum
|
Light output:
Anodized aluminum
|
| Light Uniformity | ±10% | ±10% | |||||
| Manufacturer | Illumination Technologies | Illumination Technologies | Illumination Technologies | Illumination Technologies | Illumination Technologies | Illumination Technologies | Illumination Technologies |
