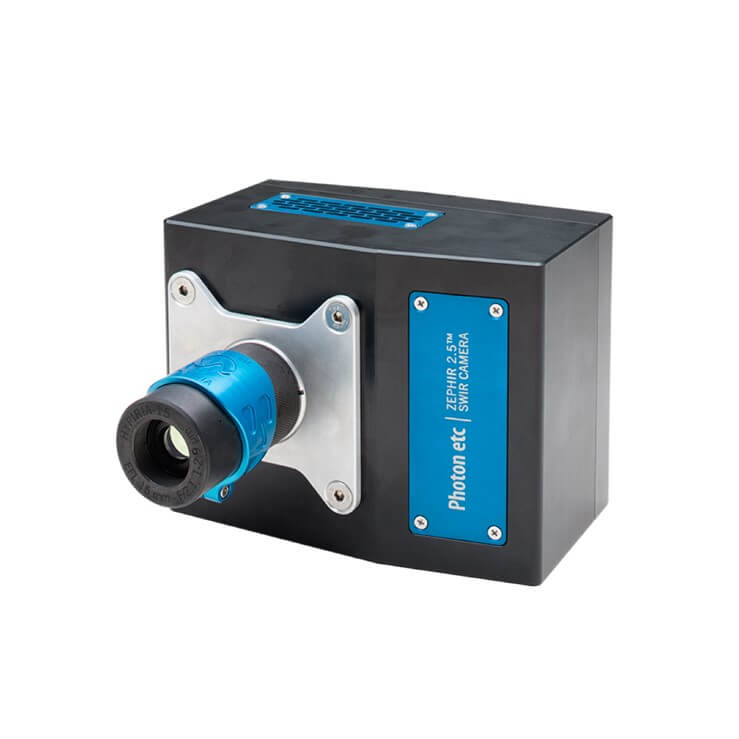

Zephir 2.5 Cooled SWIR Camera
Features
- The ZephIR 2.5 is a deep-cooled, extended SWIR camera sensitive from 850 to 2500 nm. By deep-cooling the infrared sensor, the ZephIR 2.5 is able to acquire more signals and minimize unwanted noise for a given imaging application. The extended spectral range offers scientists and engineers the possibility of acquiring a signal covering a broader wavelength spectrum, which helps build better infrared detection systems. By using thermoelectric cooling, the ZephIR 2.5 doesn’t require a water or a liquid nitrogen chilled unit and does not suffer from the limited lifetime of Stirling mechanical coolers. This leads to greater usability and flexibility when integrating ZephIR 2.5 cameras in your own systems.
With high frame rates allowing high speed image acquisitions through USB 3.0 or cameralink, the ZephIR 2.5 is tailored for demanding industrial applications or high precision scientific experiments. Users can also choose to use Photon etc’s PHySpec camera control software or develop their own using a Python or C++ software development kit (SDK).
Specifications
| Zephir 2.5 Cooled SWIR Camera | |
| Focal plane array (FPA) | HgCdTe |
| FPA size (px) | 320 x 256 |
| Spectral range (QE > 10%) |
0.85 - 2.5 µm |
| FPA operating temperature | -80 °C |
| Dark current (sensor at -80 °C) |
Target at 21 °C: < 30 (Typ. ~20) Mē/px/s |
| Frame rate in USB 3.0 (fps) |
Up to 340 full frame 2200 for a 64x64 ROI |
| Frame rate in CameraLink™ (fps) |
Up to 340 full frame 2200 for a 64x64 ROI |
| Digitization (bits) | 14 |
| Computer interface | CameraLink™ or USB 3.0 |
| ※ For more detail, please download specification document. | |
Applications
Industrial
Mining & Geology
Food & Agriculture
Process Monitoring and Sorting
