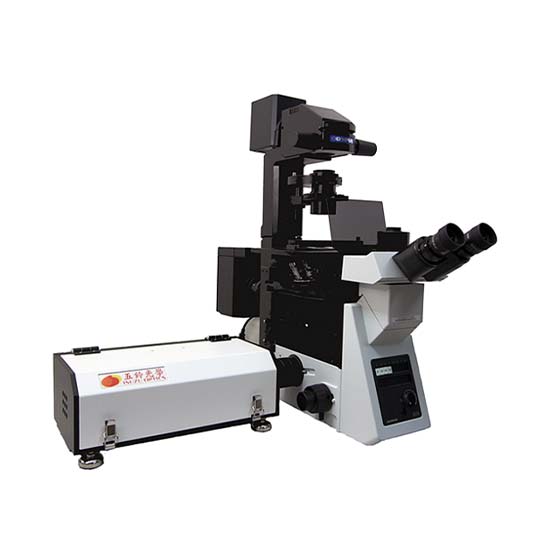

VNIR Fluorescence Microscope Hyperspectral System (IX73 + Internal-Scan)
- Spectral camera produces the image of the target at tensor hundreds of wavelengths simultaneously.
- Two standard versions available
-- VIS (380-800nm)
-- VNIR (400-1,000nm) - Spectral camera is aligned and calibrated and no need
- for adjustments.
- Compact and Robust. Suitable for industrial and scientific research applications.
Specifications
| V10E-Zyla 4.2 | |||||||||||
| Sensor and Spectral Range | Zyla 4.2 PLUS | ||||||||||
| Pixels (spatial x spectral) | 2048 x 2048 | ||||||||||
| Analog-Digital Converter | 16 bits | ||||||||||
| Imaging Spectrograph Options | VIS：V8E (380~800nm) VNIR：V10E (400~1,000nm) |
||||||||||
| OBF Option | VNIR ： OBF570 | ||||||||||
| Lens Mount | C-mount | ||||||||||
| Cooling | 0 degree C | ||||||||||
| Interface | USB 3.0 | ||||||||||
| Operating Temperature | +5 ~ +40 degree C ,Non-condensing | ||||||||||
| Light Source | 150W Halogen Lamp | ||||||||||
| Object Lens Option | x5, x10, x20, x50 | ||||||||||
