VNIR-SC-I

VNIR-SC-I
Features

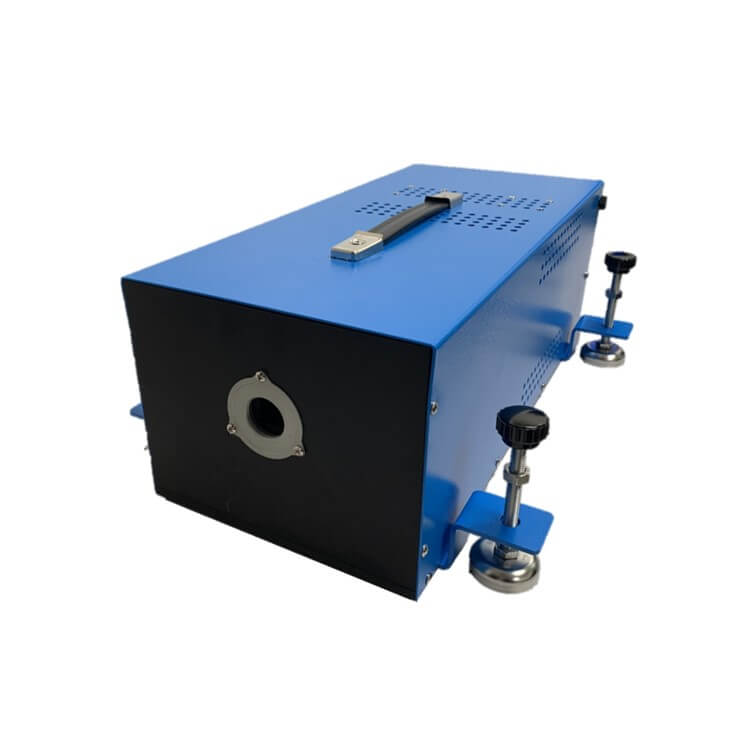

  • IOC VNIR-SC-I is a VNIR hyperspectral system developed by Isuzu Optics Corp. It can capture 380-800nm or 400-1000nm hyperspectral cube depend on which spectrograph is chosen. With line scanning function, it can be applied to microscopic systems or inspection setup on production line.
Specifications
VNIR-SC-I
Sensor and Spectral Range sCMOS Sensor
380-800 nm/400-1000 nm
Pixels (spatial x spectral) 2000 x 2000
Analog-Digital Converter 16 bits
Imaging Spectrograph Options V8E (380~800nm)
V10E (400~1,000nm)
OBF Option VNIR : OBF570
Lens Mount C-mount
Camera Cooling -10°C
Interface USB 3.0
Scanning Mechanism Stepping motorized linear stage
Operating Temperature +5 ~ +40 degree C ,Non-condensing
Applications
Biomedical applications
Agriculture / Food processing
Drug development
Recyclables Sorting
Environmental monitoring
Surveillance
