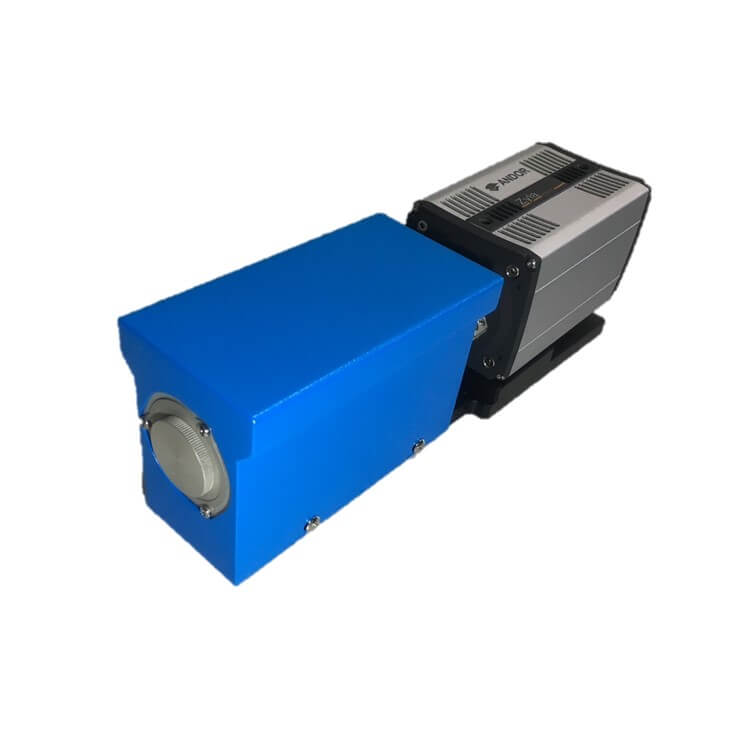

VNIR-SC
Features
- IOC VNIR-SC is a VNIR hyperspectral system developed by Isuzu Optics Corp. It can capture 380-800nm or 400-1000nm hyperspectral cube depend on which spectrograph is chosen. With external line scanning mechanism, it can be applied to microscopic systems or inspection setup on production line.
Specifications
| VNIR-SC | |
| Sensor and Spectral Range | sCMOS Sensor 380-800 nm/400-1000 nm |
| Pixels (spatial x spectral) | 2000 x 2000 |
| Analog-Digital Converter | 16 bits |
| Imaging Spectrograph Options | V8E (380~800nm) V10E (400~1,000nm) |
| OBF Option | VNIR : OBF570 |
| Lens Mount | C-mount |
| Camera Cooling | -10°C |
| Interface | USB 3.0 |
| Scanning Mechanism | External motorized linear stage |
| Operating Temperature | +5 ~ +40 degree C ,Non-condensing |
Applications
Biomedical applications
Agriculture / Food processing
Drug development
Recyclables Sorting
Environmental monitoring
Surveillance
