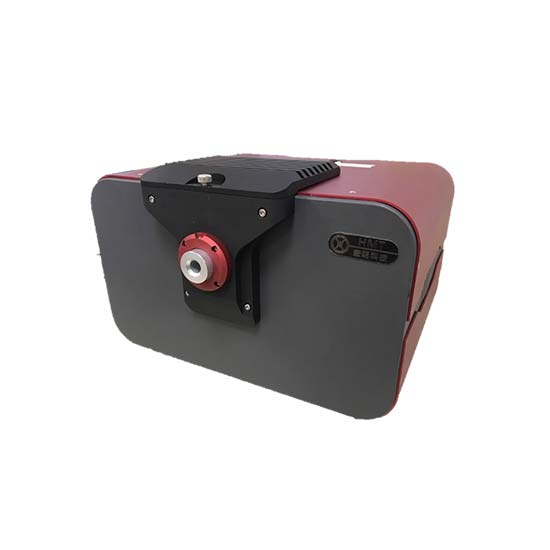

Spectrum Trunable Light Source
Features
- By controlling the filter linearly adjusts the wavelength. Compared with the traditional monochromator, the light attenuation after spectral splitting is very serious, and the transmittance of our light source has over 90% of transmission in each wavelength. In addition, the system can be controlled by a computer to adjust the output band width and wavelength, and the spectral resolution can be as narrow as 10nm (FWHM) in visible light range.
Specifications
| Spectrum Trunable Light Source | |
| Lamp Life Time | 1000hr |
| Fiber Adaptor | SMA905 (可客製接頭) |
| Band Step | 2nm |
| 光學解析度 | 10nm @ VIS |
| 再現性 | ±2nm |
| 掃描速度 | 50nm/sec |
| 控制介面 | RS232, USB |
| 電壓 | 110V |
Components
Fluorescence Quantum Yield
Sensor Quantum Efficiency
Biomedical Hyperspectral
Spectral Analysis
Colorimetric Analysis
Film Thickness Measurement
