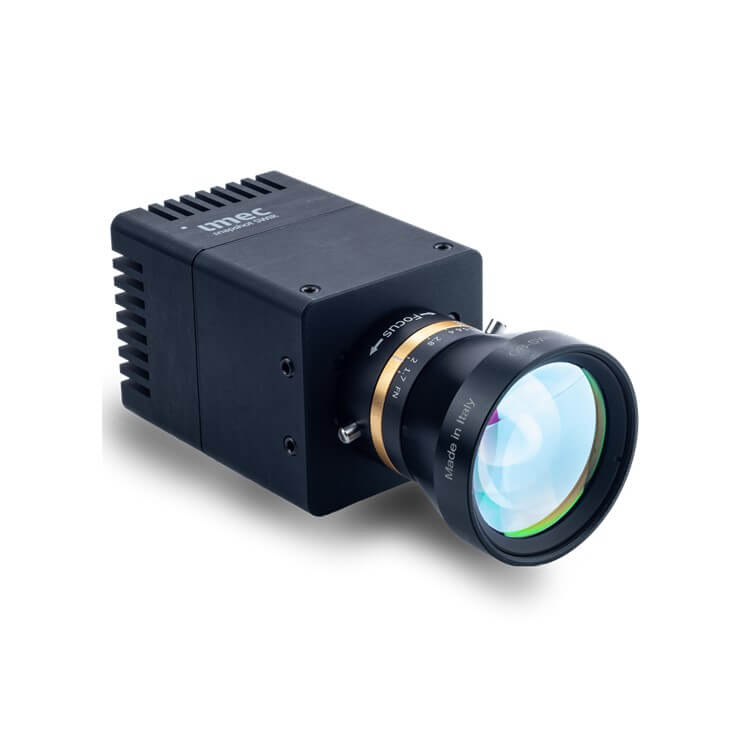

Snapshot SWIR
Features
- Video-rate acquisition of hyperspectral imaging data cubes with no motion artifacts, perfectly suited for acquisition of moving objects or scenes.
- Easy set-up with all standard components (USB3, C-mount optics).
Specifications
| Snapshot SWIR | |
| Spectral Range | 1100 - 1650 nm |
| Spectral Range | 9 |
| Spatial resolution | 640 x 512 |
| Frame Rate | Up to 120 hyperspectral cubes/second |
| Bit depth | 13 bits |
| Optics | 16 / 25 / 35 / 50 mm lenses C-mount |
| Camera Interface | USB3.0 + GPIO for triggering |
| Dimensions | 65 x 65 x 130 mm |
| Weight | 260g (without lens) |
| Integrated shutter | None |
Applications
Chemical analysis of material composition
Food safety and inspection
Medical & Healthcare
Pharmaceutical manufacturing
Waste recycling
Precision agriculture
Security & Surveillance
