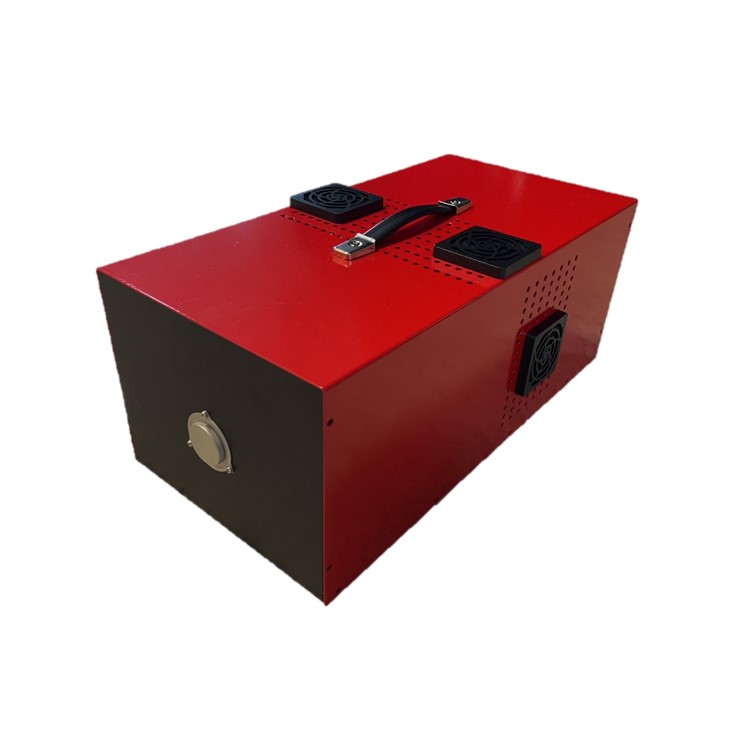

SWIR-IGA-I

SWIR-IGA-I
Features
  • SWIR-IGA-I is a SWIR hyperspectral system developed by Isuzu Optics Corp. It can capture hyperspectral cube from 900nm to 1700nm. With line scanning function, it can be applied to microscopic systems or inspection setup on production line.
Specifications
VNIR-SC-I
Sensor and Spectral Range InGaAs Sensor
900-1700 nm
Pixels (spatial x spectral) 640 x 512
Analog-Digital Converter 14 bits
Imaging Spectrograph Options Imspector N17E
OBF Option non
Lens Mount C-mount
Camera Cooling Non / 15°C / -15°C
Interface Gig-E / CameraLink
Scanning Mechanism Stepping motorized linear stage
Operating Temperature +5 ~ +40 degree C ,Non-condensing
Applications
Biomedical applications
Agriculture / Food processing
Drug development
Recyclables Sorting
Environmental monitoring
Surveillance
