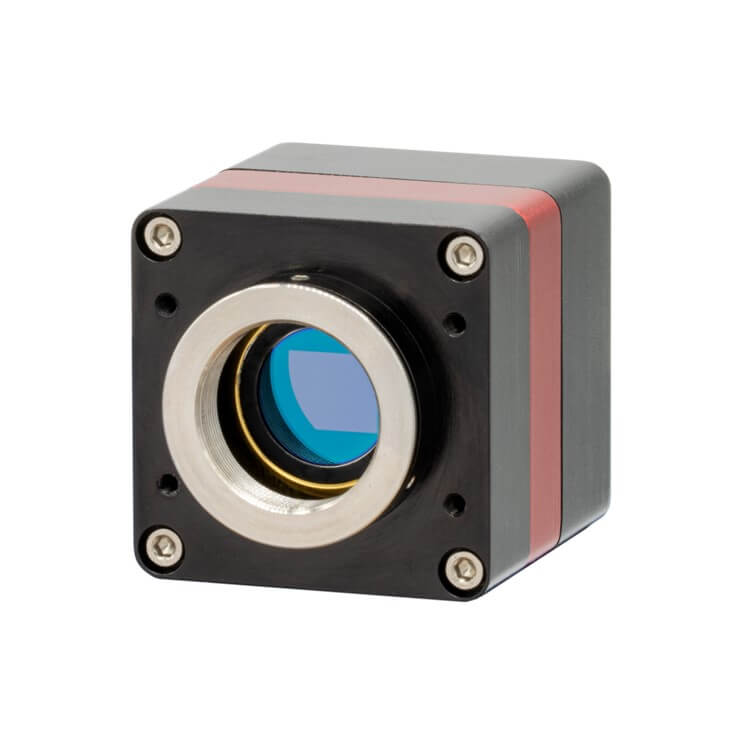

Owl 640T
Features
The Owl 640 T variant offers a low compact, low power and cost effective solution to the Owl 640 family. This SWaP (Size, weight and power) design is perfect for integration into small OEM and machine vision scientific platforms.
- Visible-SWIR
- 10μm x 10μm pixel pitch
- Ultra compact, Rugged and has no fan
Specifications
| Owl 640T | |
| Focal plane array (FPA) | InGaAs |
| FPA size (px) | 640 x 512 |
| Spectral range (QE > 10%) |
0.6μm to 1.7μm |
| FPA operating temperature | 15°C |
| Dark current (sensor at 15 °C) |
<19,000 e/p/s |
| Frame rate in USB 3.0 (fps) |
NA |
| Frame rate in CameraLink™ (fps) |
60Hz |
| Digitization (bits) | 12 |
| Computer interface | CameraLink™ |
| ※ For more detail, please download specification document. | |
Applications
860nm、1064nm、1550nm laser line detection
Hand Held System
Vision enhancement
Machine vision
Beam profiling
Semiconductor inspection
Solar panel cell inspection
