Features

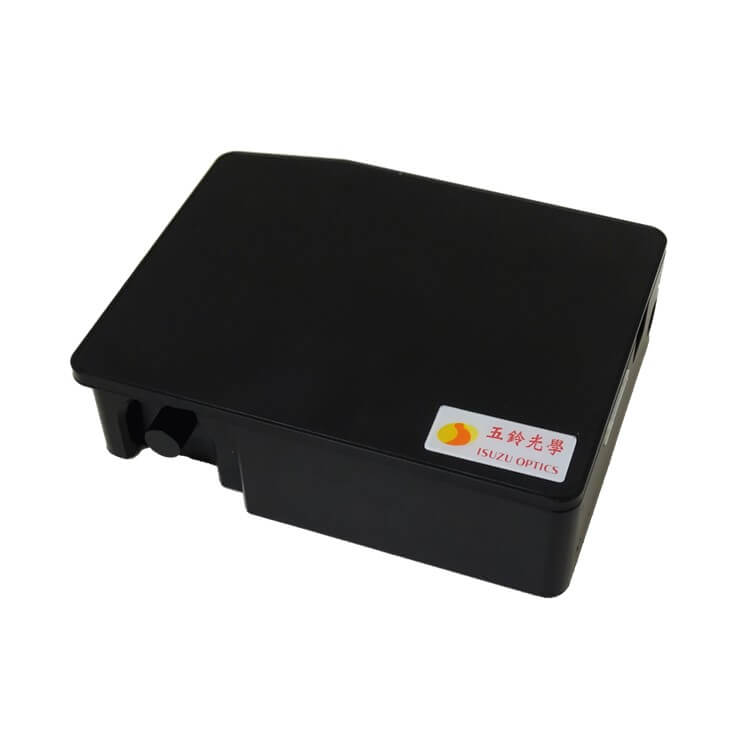

SE is composed of CCD sensor and 32bits RISC microcontroller, which has a simplified structure and optimized spectral analysis core. In terms of spectrum measurement, its optical structure can provide very strong and stable measurement performance, especially in terms of resolution and wavelength drift, it has excellent temperature and humidity, vibration, and impact stability. The miniaturized design provides flexibility for various system integration.

Specifications

Non-Cooled SE Series
Wavelength Range	SE2020 SE2030 SE2040 SE2050/2052 SE2070 SE2080 SE2090
Sensor	SONY ILX511B UV enhanced front-illuminated CCD HAMAMATSU S11639 Quick Exposure CMOS SONY ILX554B Front-illuminated CCD HAMAMATSU S11510 near-infrared enhanced back-illuminated CCD Toshiba 1304 High Resolution CCD HAMA MATSU S13496 Quick Exposure CMOS HAMA MATSU S11071 High-speed exposure back-illuminated CCD
Dynamic range (the calculation of dynamic range is calculated by the average value of dark noise of multiple spectrometers)	1630-4400
SNR Range	200-500
Optical System Parameters	f/# : 5, NA :0.1, Focal Length(R1-R2):60-60 It is recommended that the user design the NA value of the incident light to be greater than the NA value of the spectrometer design
Physical Dimension	110(L) x 86(W) x 32.4(H) mm
Grating	15 gratings to choose from wavelength selection from UV to NIR
Slit Width	10, 25, 50, 100, 200, 300 um
Integration Time	0.2ms ~ 65sec, according to the selected sensor type
Wavelength Accuracy	± 0.3 nm
Resolution (Peak FWHM)	From 0.2 nm ~ 10.5 nm, assembled according to different specifications
Temperature Stability	<0.04nm/°C
Storage Temperature	-30°C to +70°C
Operating Temperature	0°C to +50°C
Environment Humidity	0% - 90% non-condensing
Interface	USB 2.0 @ 480 Mbps (High Speed)
Spectrometer Fiber Interface	SMA905: Φ3.18±0.005mm SMA905: Φ3.20±0.01mm
System hole locking recommended torque	0.3 Nm
Power Specifications	Power Requirement: 300mA at +5 VDC Support voltage: 4.75-5.25 Boot time: Maximum input power supply Vcc: +5.25VDC I/O signal voltage: +5.5VDC

Applications

Optical Measurements

• Reflectance, Transmittance, Absorbance

Biomedical testing

• Measuring Glucose Using Fluorescence

• Determination of protein, triglycerides using UV absorption method

• Measurement of electrolytes, bilirubin using colorimetry

• Measuring Uric Acid Using Enzyme Immunoassay

Photoelectric detection

• LED white light (after packaging) testing equipment

• Solar panel reflectance measurement equipment

• Laser wavelength calibration

• Screen Chromatic Difference Correction

Environmental test

• Air quality

• Water Quality Monitoring
