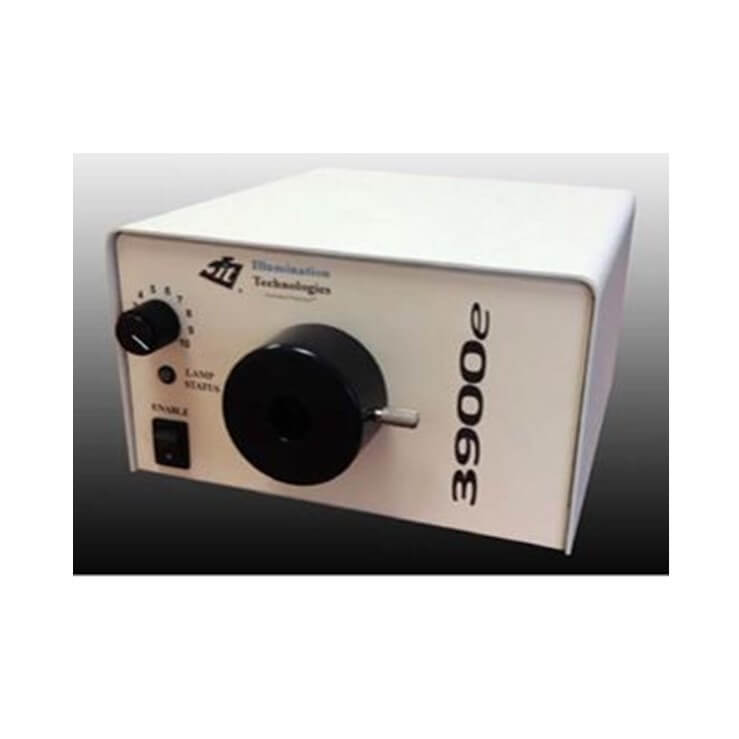

Illumination Technologies 3900e
Features
- Excellent short/long-term stability.
- A concise and extremely user-friendly fiber optic light source.
- The most stable and widest dynamic range tungsten halogen light source.
- Fully programmable controlled.
- One-button AutuCalTM calibration.
→ Optical output feedback control.
→ Provides high-precision measurements of bulb status and lifespan. - The device can be used with standard and custom fiber optic accessories.
- TUV safety certification.
- Complies with FDA cGMP standards 21CFR Parts 210 and 211 (pharmaceutical engineering) and Part 820 (medical devices) for equipment/processing validation and calibration standards.
Specifications
| Illumination Technologies 3900e | |
| Dimensions (L*W*H) | High：4.5" (115mm) Width：7.2" (185mm) Length：7.5" (190mm) Weight：4.4Ibs (2.0kg) |
| Tability | Regulation：0.1% (Photometric) Noise：0.1% (Photometric) Long-term：1.0% (Photometric) |
| Electrical Specifications | Input：100-240VAC (50/60Hz) Input Power：290VA Inrush：120V 3.6A Current：240V 2.6A |
| Operating Environment | Temperature：0 to 40℃ Relative Humidity：0 to 95% |
| Control interface | Manual：Front Panel Pot Standard Serial：RS-232 COM Options：USB,Ethernet SS Relay：Manual & Serial |

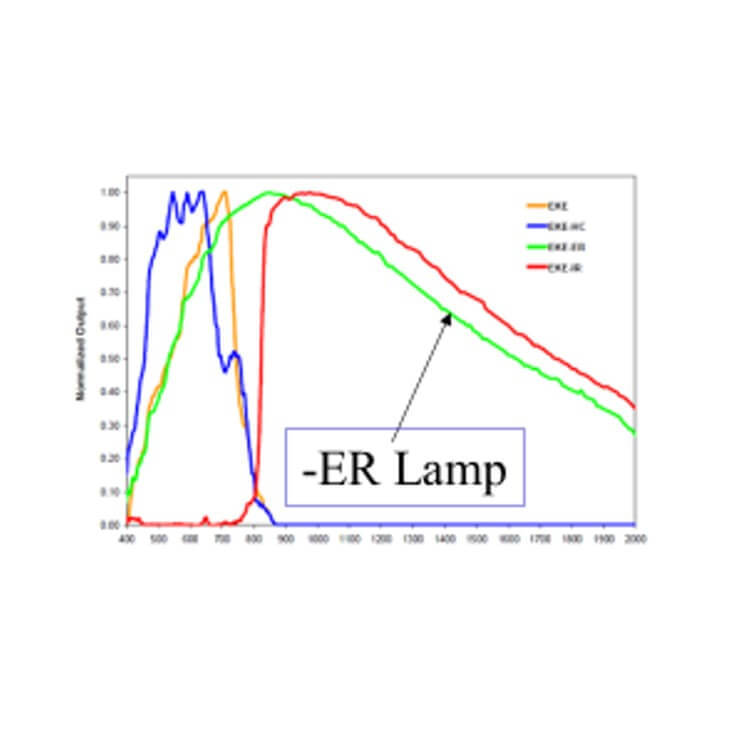

| Lamps | Visible：9596-B for 3900e (3000K) High CCT：9596-HC for 3900e-HC (4200K) CIE-A：9596-ER for 3900e-ER (400~2000nm) NIR：9596-ER for 3900e-IR (700~2000nm) |
Applications
CCD/CMOS testing
Biomedical applications
Digital/Confocal microscopy
Hyperspectral imaging
Food processing
CIE-A light source standard
Near-infrared light applications (700-2000nm)
Drug development
