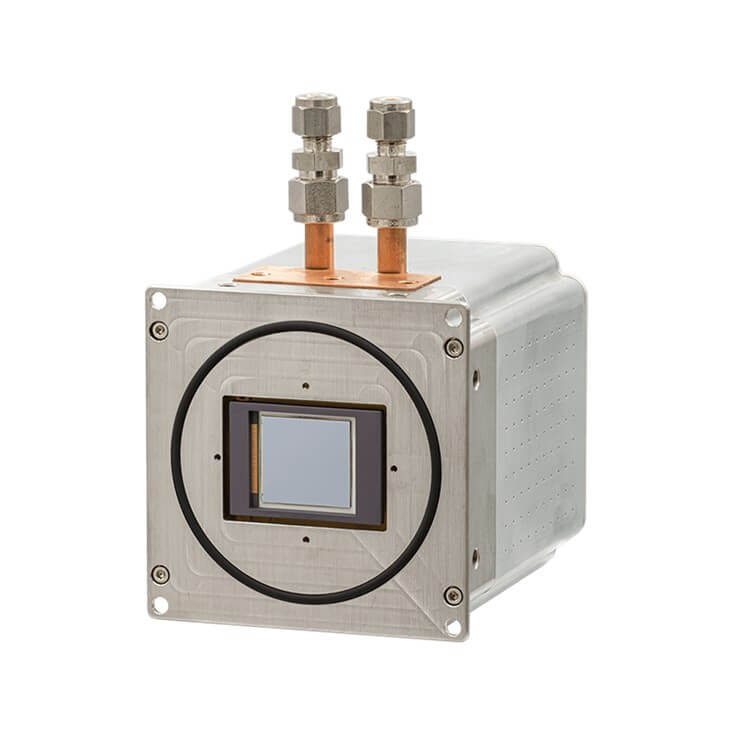

Falcon III-XV
Features
- The Falcon III XV is Raptor’s latest offering for the in-vacuum X-Ray market, perfect for imaging very weak X-Ray samples close to UV and VUV, where speed is important. Using a next-generation uncoated EMCCD sensor offering 1MP resolution with 10µm square pixels, the Falcon III XV offers ultimate sensitivity and low noise, running at 30 fps in full resolution, faster if ROI’ed or binned. The Falcon III XV is available with a range of feedthrough options - including trigger, liquid, power and CameraLink.
Specifications
| Falcon III-XV | |
| Focal plane array (FPA) | BT EMCCD |
| FPA size (px) | 1024 x 1024 |
| Spectral range (QE > 90%) |
12eV to 20keV |
| FPA operating temperature | -70°C with 20°C liquid & fan |
| Dark current | 0.001 @ -70°C(e/p/s) |
| FrameRa | 31Hz |
| Integration Time | 1ms to >1hr |
| Digitization (bits) | 16 |
| Computer interface | CameraLink™ |
| ※ For more detail, please download specification document. | |
Applications
X-Ray Imaging
X-Ray Diffraction (XRD) and X-Ray Fluorescence (XRF)
X-Ray Plasma Imaging and Diagnostics
Soft X-Ray Microscopy
EUV X-Ray Spectroscopy
X-Ray source characterization
X-Ray Phase Contrast Imaging
X-Ray Tomography
VUV/EUV/XUV Imaging and Lithography Crystallography
Holography and lithography
Thin films and nanofibers
