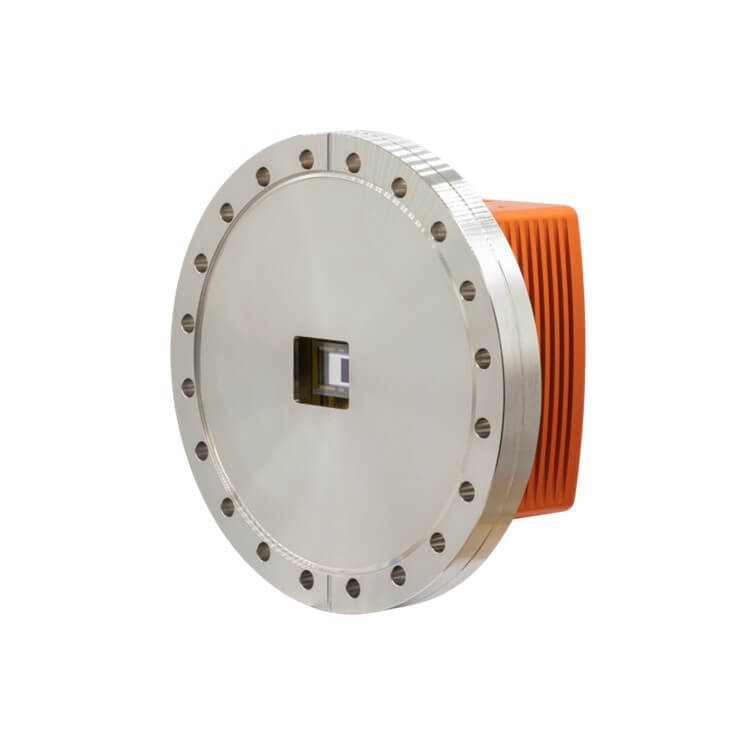

Falcon III-XO
Features
- The only high energy direct X-Ray using a 1MP Frame Transfer EMCCD sensor. The Falcon III XO offers a combination of speed and sensitivity for soft X-Ray applications up to 20KeV. The camera runs at 31.5fps in full resolution, fasted with ROI and binning. It offers <1e- readout noise using EM Gain. The Falcon III XO is available with options on cooling, as well as a selection of CF flanges.
Specifications
| Falcon III-XO | |
| Focal plane array (FPA) | BT EMCCD |
| FPA size (px) | 1024 x 1024 |
| Spectral range (QE > 90%) |
12eV to 20keV |
| FPA operating temperature | -40°C with fan / -70°C with 20°C liquid & fan |
| Dark current | 0.001 @ -70°C(e/p/s) |
| FrameRa | 31Hz |
| Integration Time | 1ms to >1hr |
| Digitization (bits) | 16 |
| Computer interface | CameraLink™ |
| ※ For more detail, please download specification document. | |
Applications
X-Ray Imaging
X-Ray Diffraction (XRD) and X-Ray Fluorescence (XRF)
X-Ray Plasma Imaging and Diagnostics
Soft X-Ray Microscopy
EUV X-Ray Spectroscopy
X-Ray source characterization
X-Ray Phase Contrast Imaging
X-Ray Tomography
VUV/EUV/XUV Imaging and Lithography Crystallography
Holography and lithography
Thin films and nanofibers
